Remote Control Programmer
About Remote Control Programmer |
||||
| PC Remote Control Programmer (Remote Programmer) was designed with solely purpose – Remote Plug-in customization. It is stand-alone application modifying .xml file which in turn is the storage for Keys map used by Remote Plug-in. Keys map keeps the identification number optionally assigned to the Remote Control button. It’s not necessarily for this number to be unique, more over, some of the buttons can be disabled. | ||||
|
||||
How it works

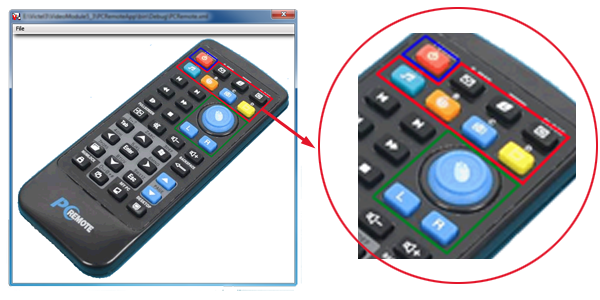

#2. All the buttons on the Remote Control are logically separated in four sections: power control section (blue outline) consisting of one Power button, functions control section (red outline), mouse control section (green outline) and the rest of the buttons. Power button alone can be disabled or programmed. Buttons belonging to functions control section can be all disabled or to be programmed individually. Mouse related control cannot be disabled or programmed. All other buttons can be programmed individually.

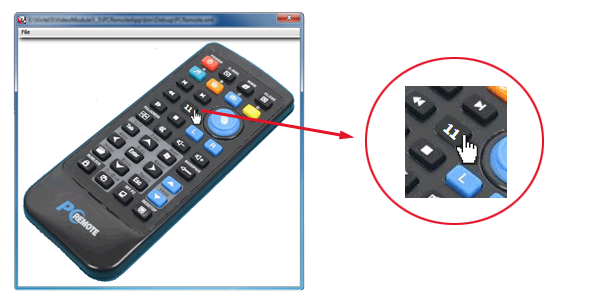

#3. Mouse over the Remote Control button shows identification number assigned to the button. If no numbers assigned, button is not programmed, – nothing will be shown. For disabled button red cross will be shown.

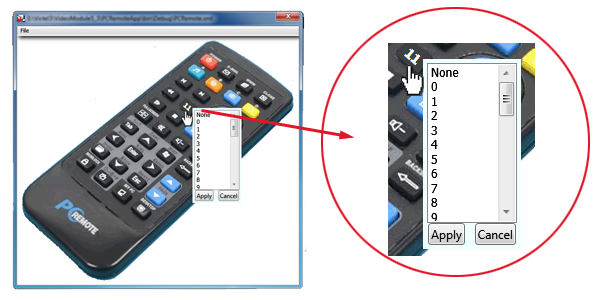

#4. While pointed to the button right mouse-click will invoke pop-up menu to select and apply identification number for the button. Choosing and applying “None” will not disable button but will not program this button, also, keys map will have no entry associated with such a button.

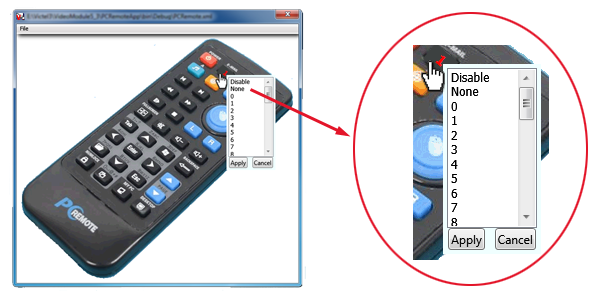

#5. Buttons belonging to power control and functions control sections have additional, “Disable”, pop-up menu item allowing to disable this button along with all the other buttons in this section.
|
